Product Overview

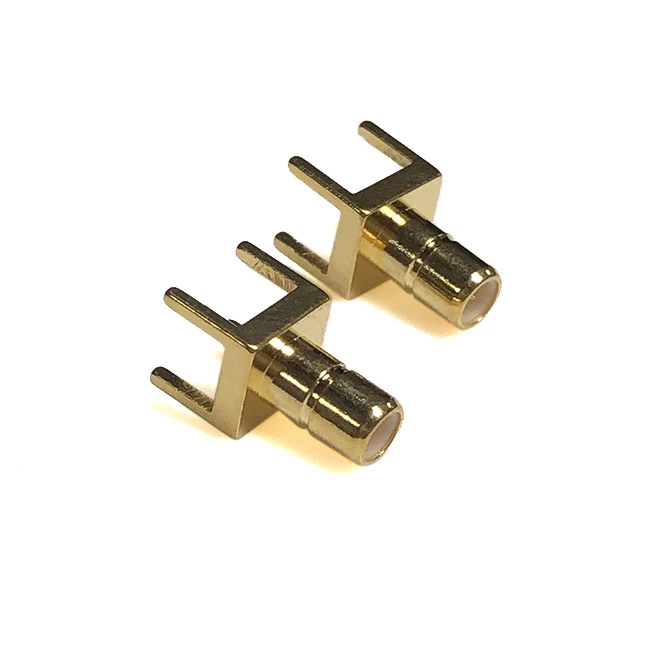

The model of SMB mount connector is SMB-JE-1.SMB series are low power RF connectors with push-snap-on coupling. Available in 50 ohms and 75ohms impedance, they have the characteristics ofeasy installation, steadyperformance, small size and light weight, and always suitable for wireless communication,measurement instruments,digital TV,instruments in microwave system or RF cables to transmit RF signals.
Product Features
Characteristic Impedance: 50 ohms marked with 50 or 50 unmarked, 75 ohms marked with 75
Contact Type: Male, Female
Housing Type: Straight: Unmarked; Angled: W
Mounting Type: Flange: F, Nut: Y, Welding: H
Connection Type: Compatible cable model, inner and outer diameter requirements, etc.
Attenuation: Signal strength attenuation caused by the passage of RF signals at different frequency bands
Thread Type: External, Internal
Electrical
|
Impedance |
50Ω |
|
Frequency Range |
0-3GHz |
|
Working Voltage |
≤335V |
|
VSWR |
≤1.2 |
|
Insulation Resistance |
≥1000mΩ |
|
Withstanding Voltage |
1000V |
|
Center Contact Resistance(mΩ) |
≤6 |
|
Outer Contact Resistance(mΩ) |
≤1 |
|
Durability |
500 cycles |
Material and Plating
| SMB-JE-1 |
Material |
Plating |
|
Body |
Brass |
Gold |
|
Center conductor |
Brass |
Gold |
|
Crimp Ferrule |
Brass |
Gold |
|
Insulator |
PTFE |
Environmental
|
Temperature Range |
-40℃ ~ +125℃ |
|
Humidity |
＜95％ |
|
Salt-fog Test |
48h |
