Product Overview

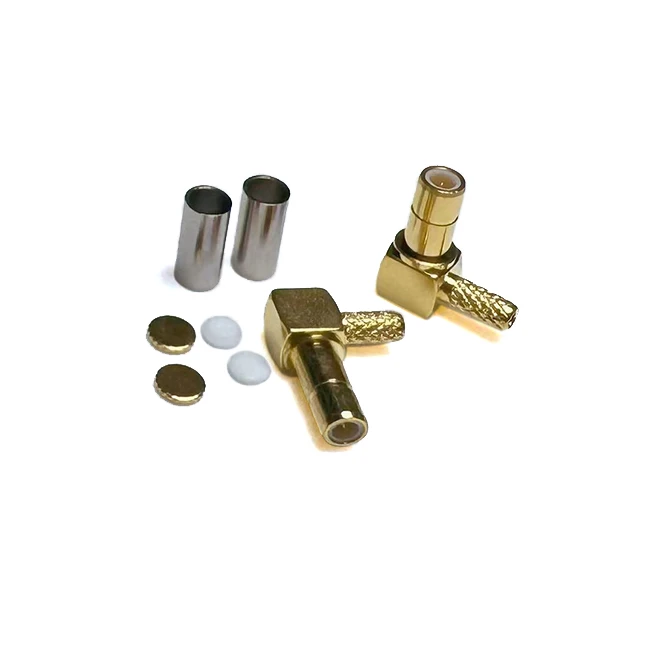

The model of SMB angle connector is SMB-C-JW1.5.SMB connectors are snap-on, blind-mate, or push-on coaxial connectors available in 50 ohm or 75 ohm ratings. Depending on the quality of their construction and material selection, these connectors are typically specified for operation from DC to 2 GHz, 3 GHz, or 4 GHz. SMB connectors are either SMB jacks or SMB plugs, where the plugs are pressed into the jacks until they connect flush with the back wall of the jack, activating a retention mechanism within the jack. Unlike other coaxial connectors and electrical connector standards, SMB connectors use SMB plugs as female connectors and SMB jacks as male connectors.
Electrical
|
Impedance |
50Ω |
|
Frequency Range |
0-3GHz |
|
Working Voltage |
≤335V |
|
VSWR |
≤1.2 |
|
Insulation Resistance |
≥1000mΩ |
|
Withstanding Voltage |
1000V |
|
Center Contact Resistance(mΩ) |
≤6 |
|
Outer Contact Resistance(mΩ) |
≤1 |
|
Durability |
500 cycles |
Material and Plating
| SMB-C-JW1.5 |
Material |
Plating |
|
Body |
Brass |
Gold |
|
Center conductor |
Brass |
Gold |
|
Crimp Ferrule |
Brass |
Gold |
|
Insulator |
PTFE |
Environmental
|
Temperature Range |
-40℃ ~ +125℃ |
|
Humidity |
＜95％ |
|
Salt-fog Test |
48h |
Zhenjiang Tongda Electronics Co., Ltd. is a professional manufacturer of SMB angle connector, providing you with products suitable for you.
