Product Overview

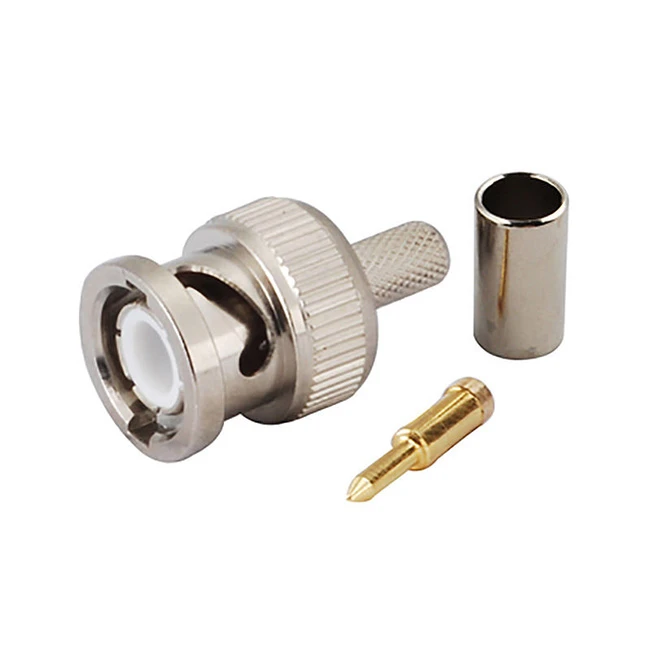

The model of BNC female right angle connectors is BNC-C-J3.The BNC series are bayonet-lock standard coaxial connectors, with characteristic impedances 50Ω or 75Ω. They have the characteristics of rapid engagement and disengagement,high reliability, simple structure etc, are used to connect RF coaxial cables in IT, industrial network,medical equipment, data communication,video systems and broadcast application.
The characteristic impedance of the bnc male connector rg58 BNC-C-J3 is usually 50Ω or 75Ω. 50Ω is mostly used for high-frequency, high-performance products, while 75Ω is used for products below 4GHz, such as analog video signal transmission in video surveillance systems.
Frequency response: The operating frequency range is generally from DC to about 4GHz, and can support low-frequency analog signals, high-frequency digital signals, and RF signals.
Insertion loss and reflection coefficient: The high-quality connector has low insertion loss, which can ensure that the signal strength will not be significantly weakened, while minimizing reflections, reducing signal interference and distortion.
Connection method: The bayonet locking mechanism is used, and the connection or disconnection operation can be completed by rotating a quarter turn, which is fast, safe and reliable.
Electrical
|
Impedance |
50Ω or 75Ω |
|
Frequency Range |
0-3GHz |
|
Working Voltage |
500V |
|
Inner Conductor Retention Force |
≥0.56N |
|
VSWR |
≤1.3(DC-1GHz) |
|
Insulation Resistance |
≥5000mΩ |
|
Withstanding Voltage |
1500V |
|
Center Contact Resistance(mΩ) |
≤1.5 |
|
Outer Contact Resistance(mΩ) |
≤1.0 |
|
Durability |
500 cycles |
Material and Plating
| BNC-C-J3 |
Material |
Plating |
|
Body |
Brass |
Ni |
|
Inner conductor |
Phosphor bronze |
Au |
|
Coupling Nut |
Brass |
Ni |
|
Sleeving |
Brass |
Ni |
|
O-Ring |
Silicone Rubber |
|
|
Insulator |
PTFE |
|
|
Nut |
Brass |
Ni |
|
Washer |
Phosphor bronze |
Ni |
Environmental
|
Temperature Range |
-55~+155℃ |
|
Humidity |
＜95％ |
|
Salt-fog Test |
48h |
