Product Overview

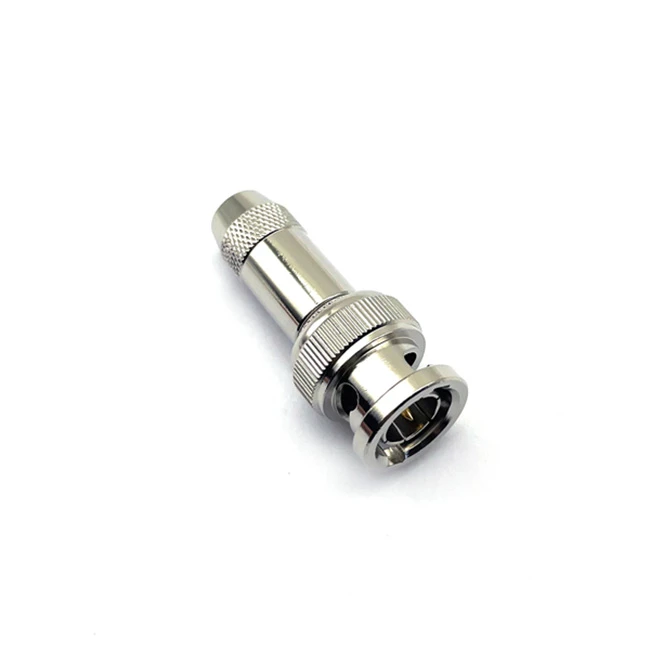

The model of male bnc cable is BNC-J2.The BNC series are bayonet-lock standard coaxial connectors, with characteristic impedances 50Ω or 75Ω. They have the characteristics of rapid engagement and disengagement,high reliability, simple structure etc, are used to connect RF coaxial cables in IT, industrial network,medical equipment, data communication,video systems and broadcast application.
Electrical
|
Impedance |
50Ω or 75Ω |
|
Frequency Range |
0-3GHz |
|
Working Voltage |
500V |
|
Inner Conductor Retention Force |
≥0.56N |
|
VSWR |
≤1.3(DC-1GHz) |
|
Insulation Resistance |
≥5000mΩ |
|
Withstanding Voltage |
1500V |
|
Center Contact Resistance(mΩ) |
≤1.5 |
|
Outer Contact Resistance(mΩ) |
≤1.0 |
|
Durability |
500 cycles |
Material and Plating
| BNC-J2 |
Material |
Plating |
|
Body |
Brass |
Ni |
|
Inner conductor |
Phosphor bronze |
Au |
|
Coupling Nut |
Brass |
Ni |
|
Sleeving |
Brass |
Ni |
|
O-Ring |
Silicone Rubber |
|
|
Insulator |
PTFE |
|
|
Nut |
Brass |
Ni |
|
Washer |
Phosphor bronze |
Ni |
Environmental
|
Temperature Range |
-55~+155℃ |
|
Humidity |
＜95％ |
|
Salt-fog Test |
48h |
FAQ
Q: Price and supply chain
A: The product provides sample price, batch solution price (such as 1K pcs and above discount), and the sample fee can be refunded for batch production.
Q: What Is Your Sample Policy?
A: We can supply you the customized sample, but the customers have to pay the sample cost and the sea freight cost, etc. Details can be negotiated.
Q: Can You Produce According To The Samples?
A: Yes, we have our own factory, design team and R&D. We can produce by your samples or technical suggestions,details can be negotiated. We can do OEM and ODM for you.
Q: What can you buy from us?
A: RF Connectors (N, 7/16 DIN, TNC, BNC, 4.3/10, SMA, SSMA, MCX, MMCX, SMB, IF45 EIA, etc.), Surge Protectors (GAS tube technology, quarter wave technology), RF Adapters, RF Cables, Die Casting Parts. We can help you; just tell us what you need!
Q: How To Order?
A: Please send us your purchase order by email or fax, or you can ask us to send a proforma invoice for your order. We need to know the following order information:
1) Product information: preferably quantity, specification (size, material), color, logo and packaging requirements), artwork or sample.
2) Delivery time is required.
3) Transportation information: company name, address, phone number, destination seaport/airport.
4) Contact information of the freight forwarder (if you have one in China).
Q: Do you meet our country's standards?
A: We will design and manufacture products according to the requirements of different countries. If you have any special requirements, please feel free to let us know.
Q: Do you transport production to our country?
A: Yes, please kindly advise us which port you need delivery to, we will check the newest shipping cost for reference.
We also accept door-to-door transportation, please tell us the specific address.
Q: Can I order samples to check the quality and customise it with my logo?
A: Order samples first are welcome. we also provide custom service for all our products.
Q: Can I get a refund for samples once I place a bulk order?
A: Sure, we will refund you the sample cost, and give you a discount based on your bulk order amount.
Q: Can I customise my design?
A: Yes, we do have our design team, share with us your design ideas and we can make a sketch for you.
Q: What's the shipping method I can choose?
A: You could feel free to choose the express, air, train and sea shipping ways, we can help you choose the most cost-effective way based on your order.
Zhenjiang Tongda Electronics Co., Ltd. is a professional manufacturer of male bnc cable, providing you with products suitable for you.
