Product Overview

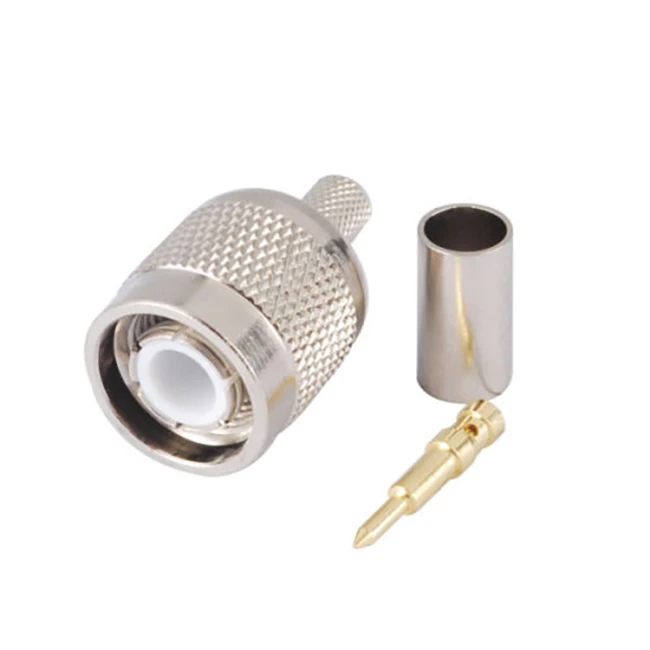

The model of TNC male crimp type connector is TNC-C-J3.TNC series, with almost the same structure with BNC, are screw-coupling standard coaxial connectors,working at an impedance of 50ohms.They have the characteristics of wide frequency band, convenientconnection,vibration-proof,reliable electrical and mechanicalproperties, are particularly utilized incomputer networks, electrical instruments and microwave system such as TV microwave station,car-carriedphone,aerospace, navigation and radar surveillance.
Electrical
|
Impedance |
50Ω |
|
Frequency Range |
0-3GHz |
|
Working Voltage |
500V |
|
VSWR |
<1.5 |
|
Withstanding Voltage |
500V |
|
Center Contact Resistance(mΩ) |
≤10 |
|
Outer Contact Resistance(mΩ) |
≤2.5 |
|
Durability |
500 cycles |
Material and Plating
| TNC-C-J3 |
Material |
Plating |
|
Body |
Brass |
Ni |
|
Center conductor |
Phosphor bronze |
Au |
|
Coupling Nut |
Brass |
Ni |
|
Contact Part |
Brass |
Ni |
|
Washer |
Brass |
Ni |
|
O-ring |
silicone rubber |
|
|
Insulator |
PTFE |
Environmental
|
Temperature Range |
-55℃ ~ +155℃ |
|
Humidity |
＜95％ |
|
Salt-fog Test |
5% NaCl solution,Test time＞48h |
Applications and Requirements
|
Application Areas |
Demand Scenario |
Demand |
|
Vehicle-mounted equipment |
Roof radar/rear view monitoring |
Earthquake resistance/stability |
|
maritime communications |
Port/Ship Signals |
Anti-corrosion/firm |
|
Outdoor base stations |
Remote relay/5G node |
Weather resistance/anti-interference |
|
Test equipment |
RF/military equipment |
High interface consistency |
