Learn about SMA metal dust cap
Design Principles

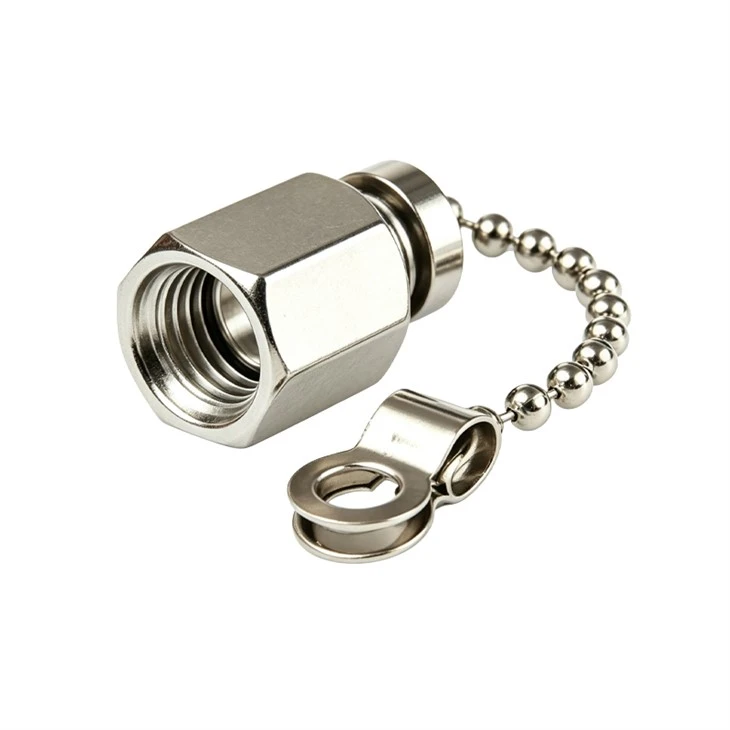

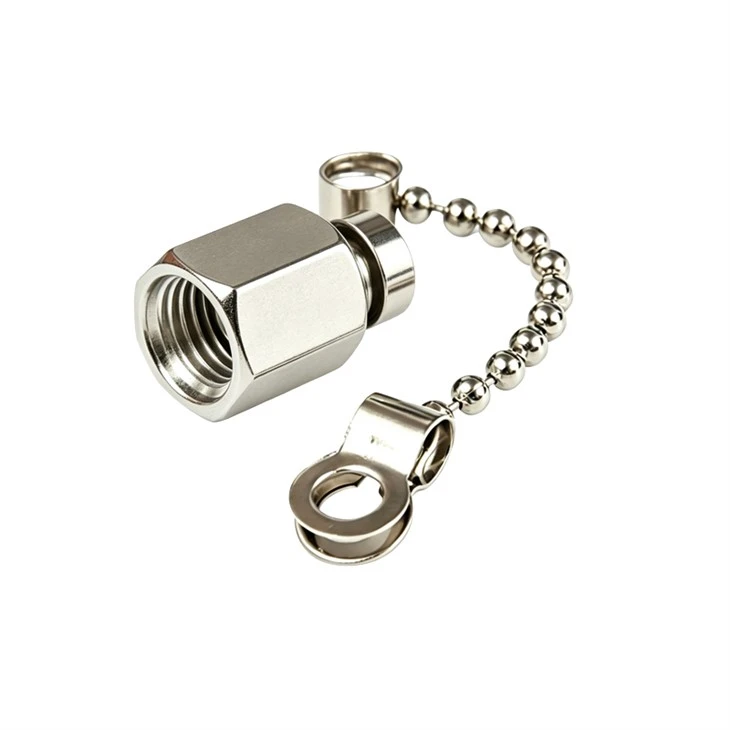

This SMA metal dust cap features a dual-protection design; a threaded locking mechanism ensures a secure fit and prevents detachment, while an internal O-ring compresses upon tightening to seal the gap, creating an airtight and watertight barrier. The nickel- or gold-plated cap offers corrosion resistance, maintaining a stable, dry internal micro-environment and effectively protecting against corrosion caused by salt spray and moisture.
Work Environment
| Temperature range | -65°C ~ +165°C |
| Waterproof Sealing | IP67 |
| Weather resistance | UV resistant and corrosion resistant |
| Impedance | 50Ω |
| Applicable frequency | DC ~ 18 GHz (compatible with SMA connector) |
parameters
| Withstanding Voltage | 1000V |
| Insulation resistance | ≥5000 MΩ |
| Center conductor retention force | 0.28N |
| Coupling nut retention force | ≥180N |
| Insertion Loss | ≥ 0.15 dB at 6 GHz |
| Shielding Efficiency | ≥100 dB at 3GHz |
Applications
1. RF test instruments: signal generators, spectrum analyzers, network analyzers.
2. Outdoor communication base stations, IoT antennas, vehicle-mounted RF modules.
3. Military, aerospace, and airborne equipment.
4. RF devices with high-voltage DC bias.
5. Marine and coastal salt spray equipment.
Notes
1. High-altitude scenarios: The higher the altitude, the lower the air breakdown voltage. Do not apply full voltage (1000V r.m.s).
2. Extreme temperatures: Prolonged exposure to temperatures exceeding +165℃ will soften the PTFE medium, accelerate O-ring aging, and degrade pressure resistance.
3. Sealed model maintenance: Replace O-rings regularly in salt spray/high-temperature environments. O-ring failure will lead to a simultaneous decrease in waterproofing and insulation capabilities.
4. Specification compatibility: Only compatible with standard SMA female connectors. Do not use with BNC, N-type, or other RF connectors.
about Us
For over thirty years, Tongda Electronics has been deeply committed to the RF coaxial connector industry, specializing in the design and manufacture of SMA metal dust caps as well as a wide range of RF coaxial connectors and accessories, with products sold worldwide.
