Product Overview

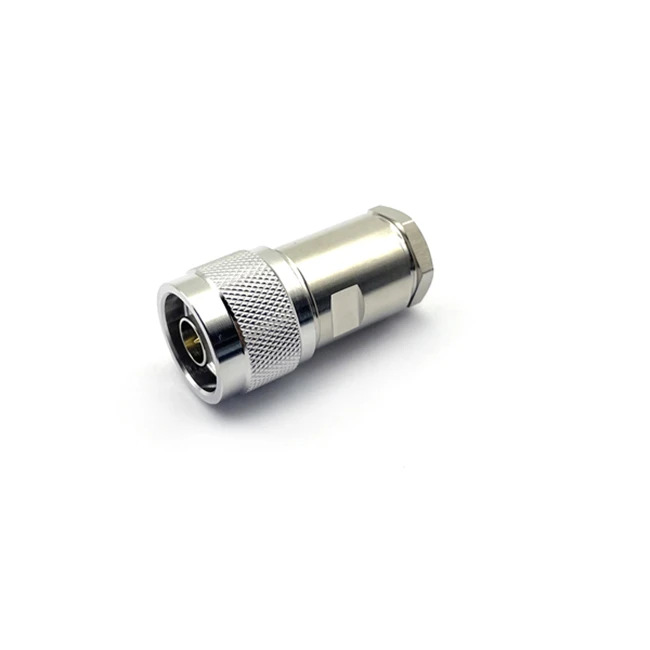

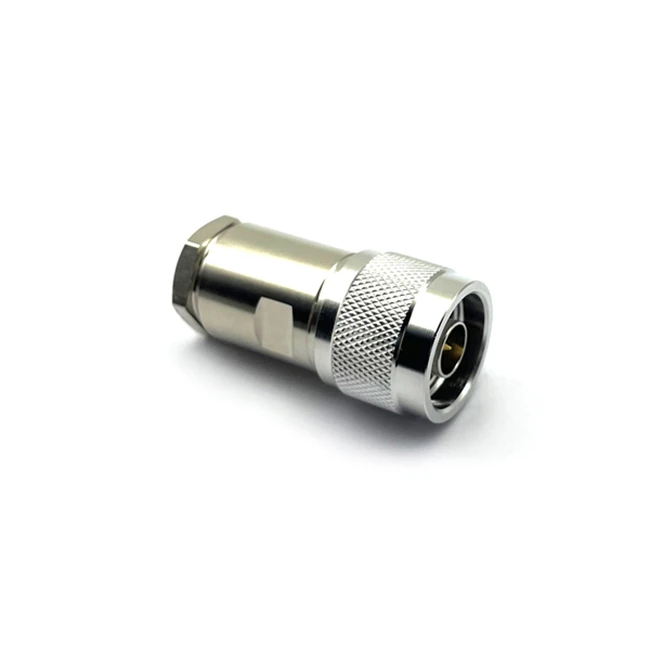

The model of N male clamp connector is N-J5.N series are very popular screw-coupling middle-or-low power coaxial connectors with impedances of 50Ω and 75Ω. They are widely used for electrical instruments or applications where vibration resistance and environmental protection is required, including communication equipment, coaxial components,duplexers, couplers, microwave testing system and microwave network or connecting RF cables. Connected with high accuracy semi-flexible or semi-rigid cables N connectors can work up to11GHz resulting in low VSWR.
Electrical
|
Impedance |
50Ω |
|
Frequency Range |
0-6GHz |
|
Working Voltage |
≤1000V |
|
VSWR |
≤1.15@2.5GHz,≤1.25@6GHz |
|
Insulation Resistance |
≥5000mΩ |
|
Withstanding Voltage |
2500V |
|
Center Contact Resistance |
≤1mΩ |
|
Outer Contact Resistance |
≤1mΩ |
|
Center Contact Retention Force |
≥0.56N |
|
Durability |
500 cycles |
Material and Plating
| N-J5 |
Material |
Plating |
|
Body |
Brass |
Cu-Sn-Zn3 |
|
Center conductor |
Phosphor bronze |
Ag |
|
Coupling Nut |
Brass |
Cu-Sn-Zn3 |
|
O-ring Sealing |
Silicone Rubber |
|
|
Insulator |
PTFE |
|
|
Material |
Plating |
|
|
Body |
Brass |
Cu-Sn-Zn3 |
|
Center conductor |
Phosphor bronze |
Ag |
Environmental
|
Temperature Range |
-65℃ ~ +165℃ |
|
Humidity |
＜95％ |
|
Salt-fog Test |
96h |
